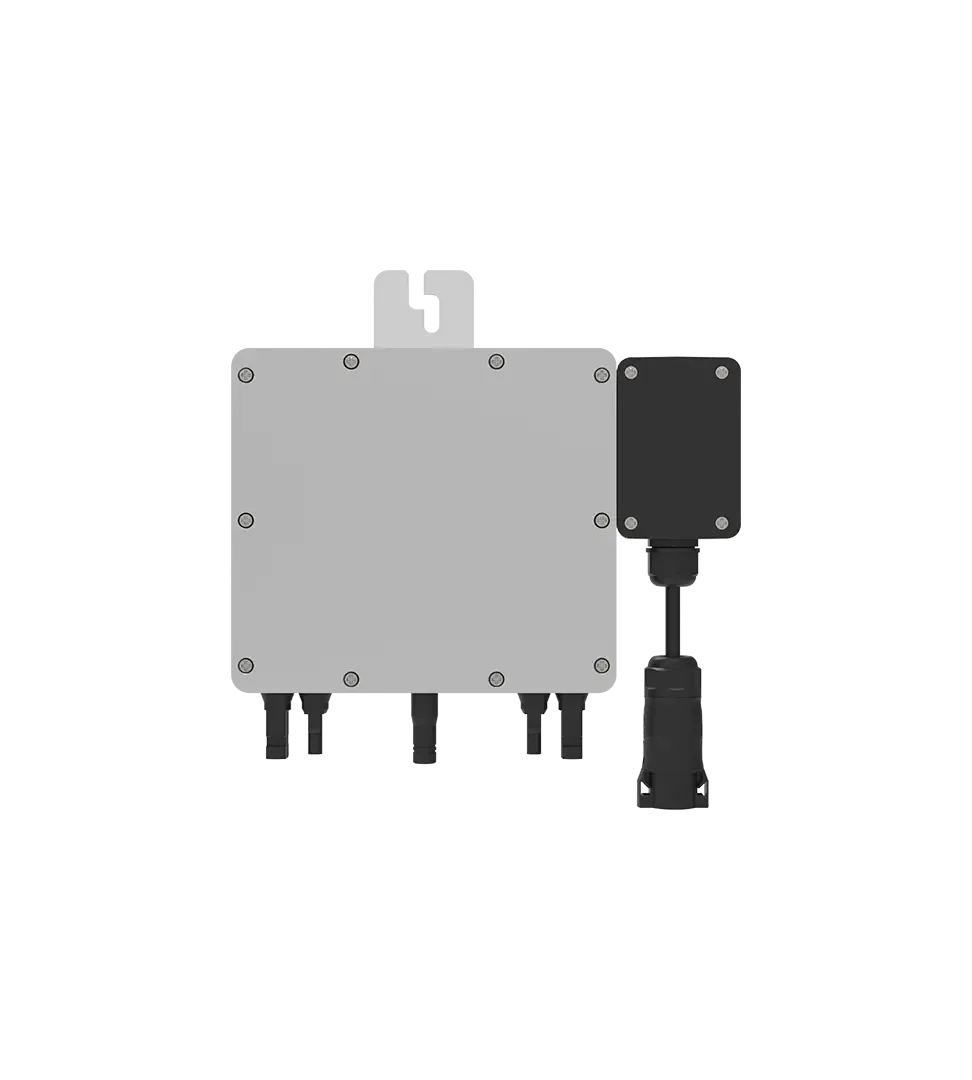

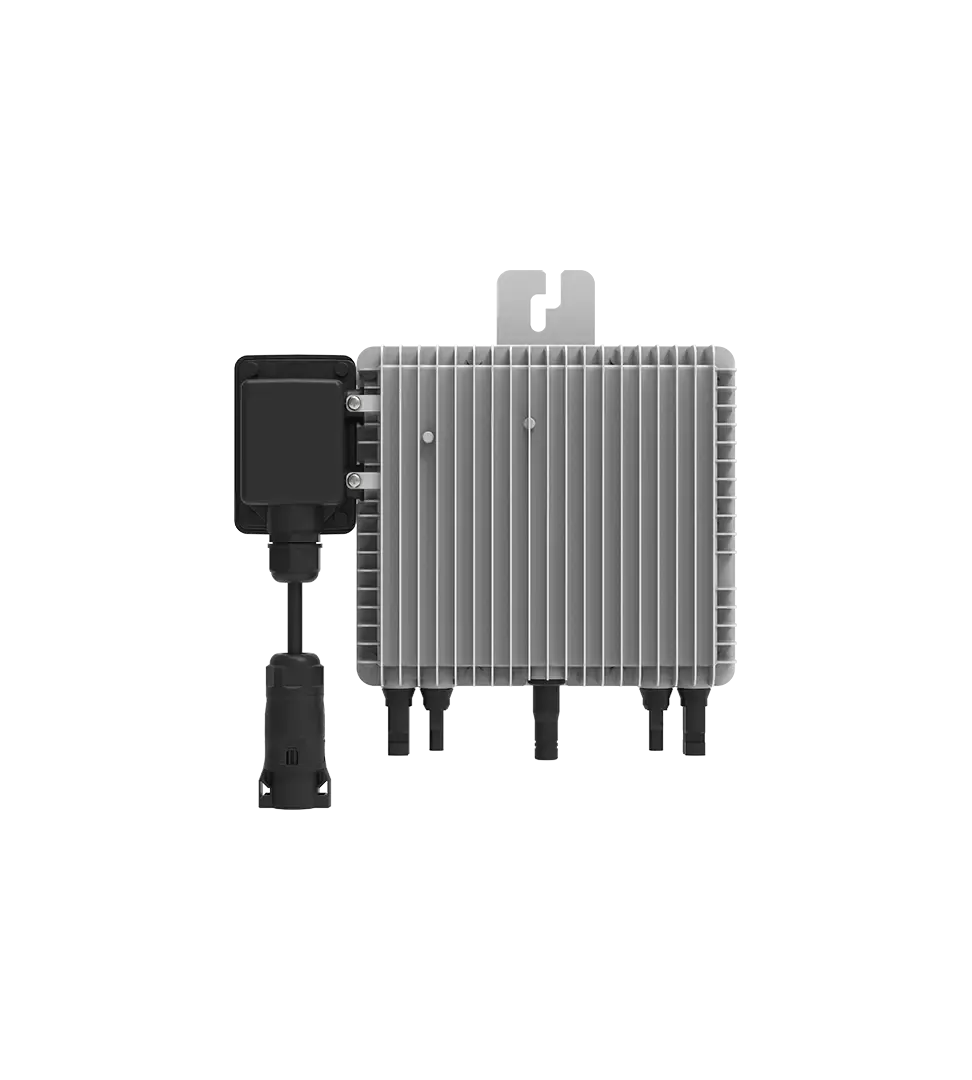

Deye SUN-M80G4-EU-Q0 Microinverter

Hibridni

Šifra: SUN-M80G4-EU

Isporuka 48 sata

Samo za registrirane korisnike

Registrirajte se za prikaz ili kupnju proizvoda

Prijava

Max. snaga: 12000 W
Raspon napona baterije: 40-60 V
Max. struja punjenja/pražnjenja: 135 A


Certifikati (klikni za pregled i preuzimanje):


PV String Input Data
  • Max. PV Input Power: 210–560 W (2 Pieces)
  • Max. PV Input Voltage: 60 V
  • Start-up Voltage: 20 V
  • MPPT Voltage Range: 25–55 V
  • Rated PV Input Voltage: 42.5 V
  • Max. Operating PV Input Current: 13 + 13 A
  • Max. Input Short Circuit Current: 19.5 + 19.5 A
  • No. of MPP Trackers / No. of Strings per MPP Tracker: 2 / 1
AC Output Side
  • Rated AC Output Active Power: 800 W
  • Max. AC Output Apparent Power: 800 VA
  • Rated AC Output Current: 3.7 / 3.5 A
  • Max. AC Output Current: 3.7 / 3.5 A
  • Rated Output Voltage/Range: 220/230 V; 0.85Un–1.1Un
  • Grid Connection Form: L/N/PE
  • Rated Output Grid Frequency/Range: 50 Hz / 45–55 Hz; 60 Hz / 55–65 Hz
  • Max. Unit per Branch: 6
  • Power Factor Adjustment Range: 0.9 leading to 0.9 lagging
  • Total Current Harmonic Distortion (THDi): <3%
  • DC Injection Current: <0.5% In
Efficiency
  • Max. Efficiency: 96.5%
  • Euro Efficiency: 96.0%
  • MPPT Efficiency: >99%
Equipment Protection
  • DC Reverse Polarity Protection: Yes
  • AC Output Overcurrent Protection: Yes
  • AC Output Overvoltage Protection: Yes
  • AC Output Short Circuit Protection: Yes
  • Thermal Protection: Yes
  • Insulation Impedance Detection: Yes
  • Anti-islanding Protection: Yes
  • Surge Protection Level: TYPE II (AC)
Interface
  • Communication Interface: Wi-Fi
General Data
  • Operating Temperature Range: -40 to +65°C, >45°C Derating
  • Permissible Ambient Humidity: 0–100%
  • Permissible Altitude: 2,000 m
  • Noise: ≤25 dB
  • Ingress Protection (IP) Rating: IP67
  • Inverter Topology: Isolated
  • Over Voltage Category: OVC II (DC), OVC III (AC)
  • Cabinet Size (W × H × D): 280.5 × 190 × 40 mm (Excluding Connectors and Brackets)
  • Weight: 3 kg
  • Type of Cooling: Natural Cooling
  • Warranty: 15 Years
Grid Regulation & Standards
  • Grid Regulation: IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, G98, VDE-AR-N 4105
  • Safety / EMC Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Additional Features
  • 2 MPPT Trackers with Module-Level Monitoring
  • Integrated Wi-Fi Communication
  • IP67 Protection Degree
  • Rapid Shutdown Function
  • Easy Installation, Suitable for Quick-Plug Balcony PV Systems
  • AC Fast Discharge: <100 ms
  • Compliance with DIN VDE V 0126-95
  • Complete NS Protection with Self-Check Function
  • External Relay for Low Operating Temperature, Long Service Life and Easy Maintenance
  • Design Lifetime: 25 Years
  • Warranty: 15 Years

Min. količina za narudžbu: 1
