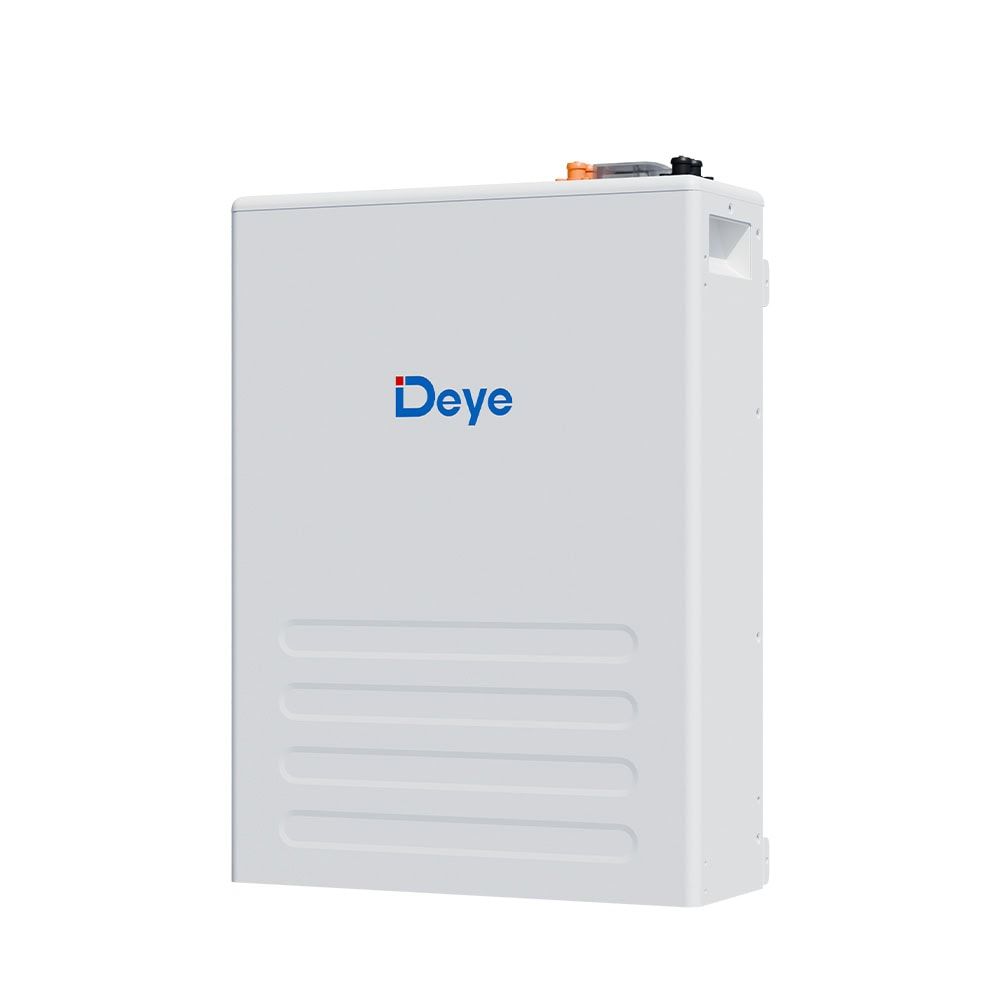

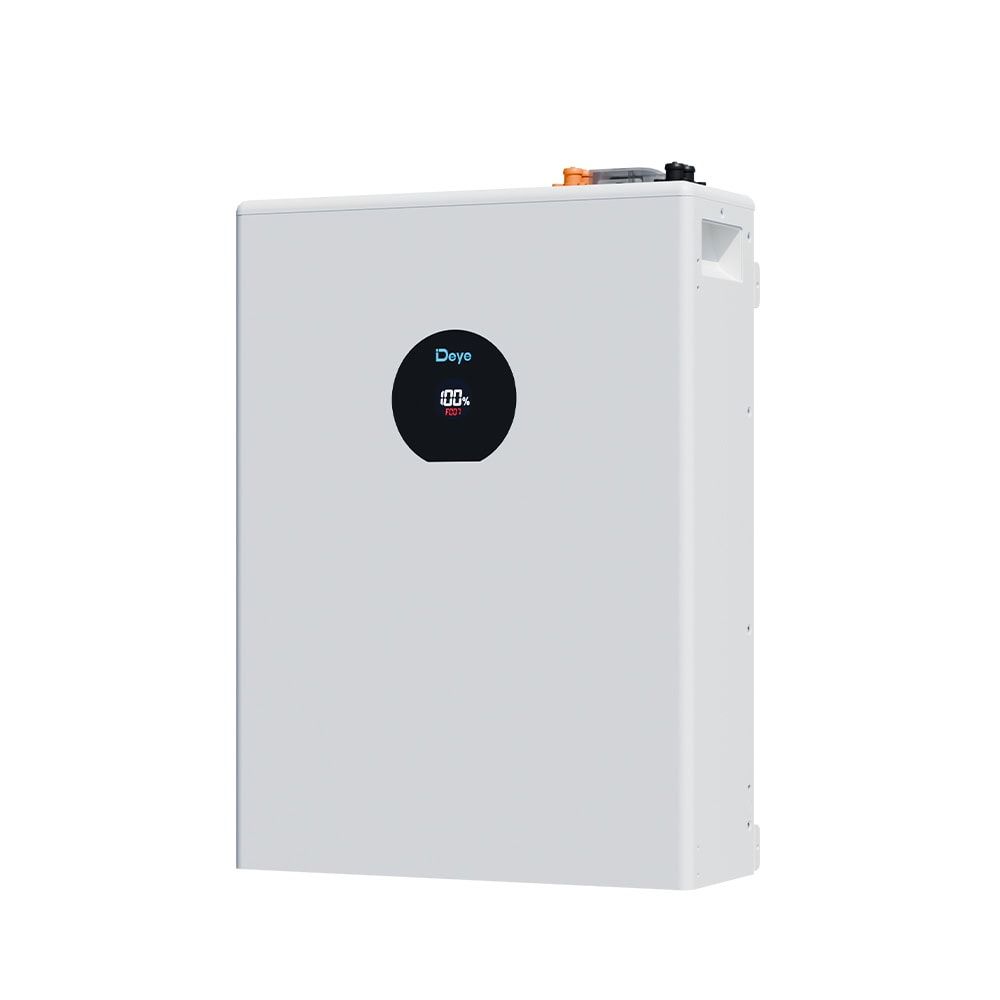

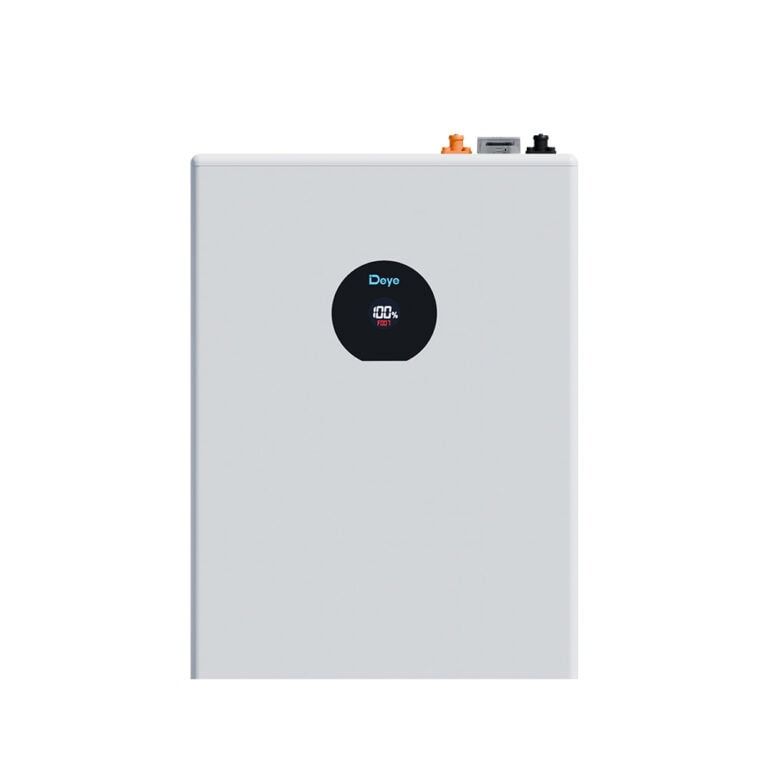

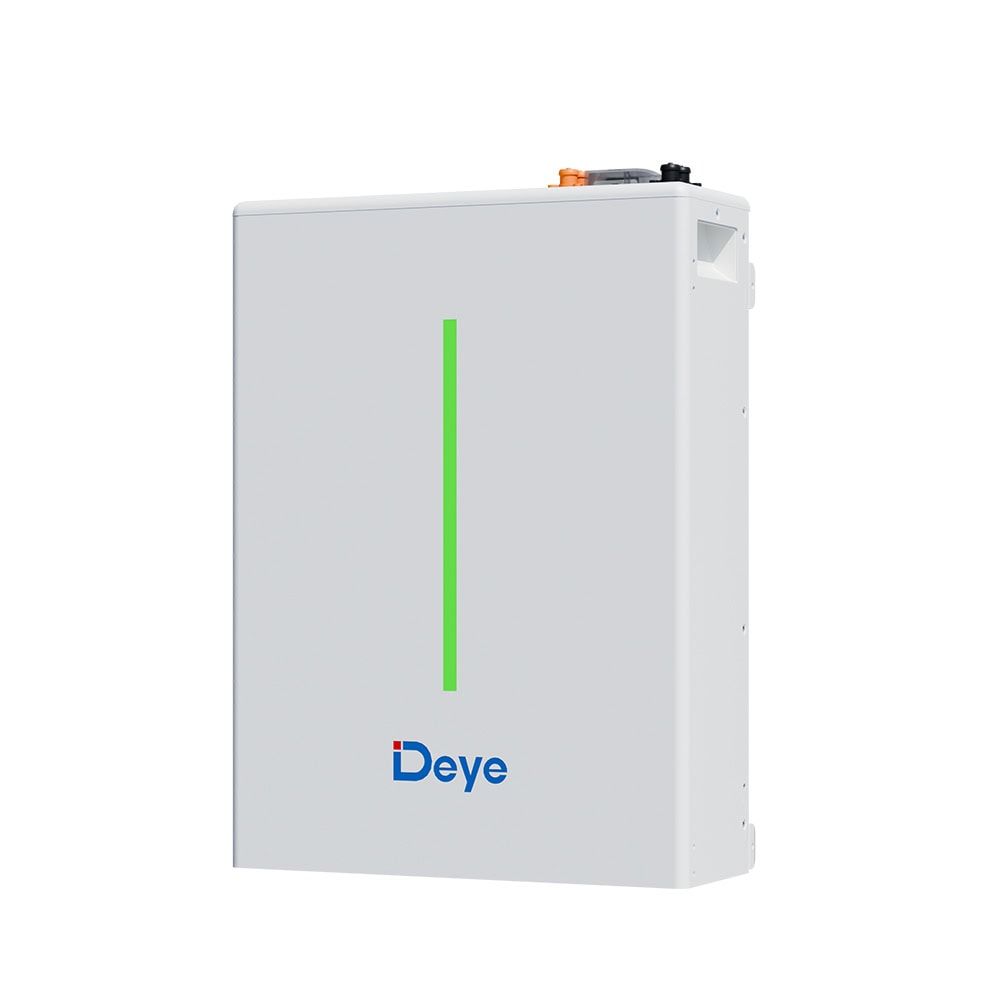

Deye SE-F5 Pro-C 5.12kWh LV energy storage

Nominal Energy: 5.12 kWh
Operating Voltage: 44.8 V ~ 57.6 V
Capacity: 100 Ah

• High Performance: Delivers up to 100A continuous and 150A peak discharge for efficient energy use
• Capacity & Energy: Offers 5.12 kWh (100 Ah) with a 90% depth of discharge, maximizing usable power
• Flexible Expansion: Connects up to 32 units in parallel to meet growing energy demands
• Safety Assurance: Features an advanced BMS and multiple safety certifications for reliable operation
• Durable Design: Operates in a wide temperature range with over 6000 cycles for long-lasting performance
• Easy Installation: Offers versatile mounting options and smart monitoring

• Model: SE-F5 Pro
• Battery Chemistry: LiFePO4
• Capacity: 100 Ah
• Scalability: max. 32 pcs in parallel
• Nominal Voltage: 51.2 V
• Operating Voltage: 44.8 V ~ 57.6 V
• Nominal Energy: 5.12 kWh
• Weight Approximate: 44 kg
• Dimension（W×H×D: 404 × 547 × 141 mm

• The Deye SE-F5 Pro is a high-performance solar and energy storage platform delivering 5.12 kWh nominal capacity with 90% depth of discharge — maximizing usable energy for dependable solar energy storage across Asia, Africa, Europe, and Latin America.

• Built on proven LiFePO4 chemistry, this solar battery portable solution offers exceptional discharge performance with 100A continuous and 150A peak capability, making it exceptionally responsive to real-world energy demands. Rated for over 6,000 cycles with an advanced BMS, this is AC battery technology engineered for safety, reliability, and long-term value.

• As a modular solar and energy storage system, the SE-F5 Pro scales dramatically — supporting up to 32 units in parallel to meet growing household and light commercial energy needs. Whether deploying a compact solar battery portable installation or a comprehensive solar energy storage network, this adaptable platform grows seamlessly with your ambitions.

• Versatile mounting options, smart monitoring, wide temperature tolerance (-20°C to 55°C), and multiple safety certifications ensure hassle-free installation and operation. It’s the complete solar and energy storage solution for those seeking reliable, scalable, and intelligent energy independence.
