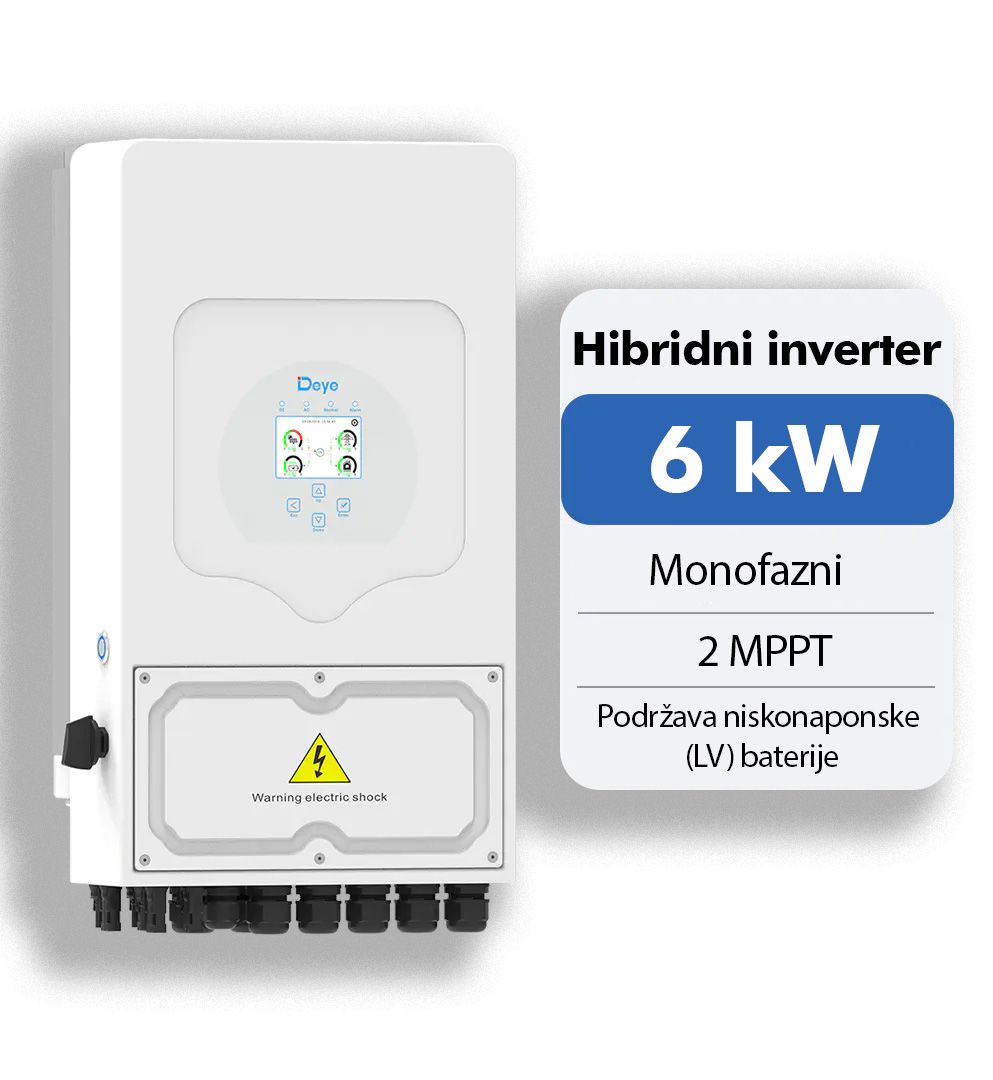

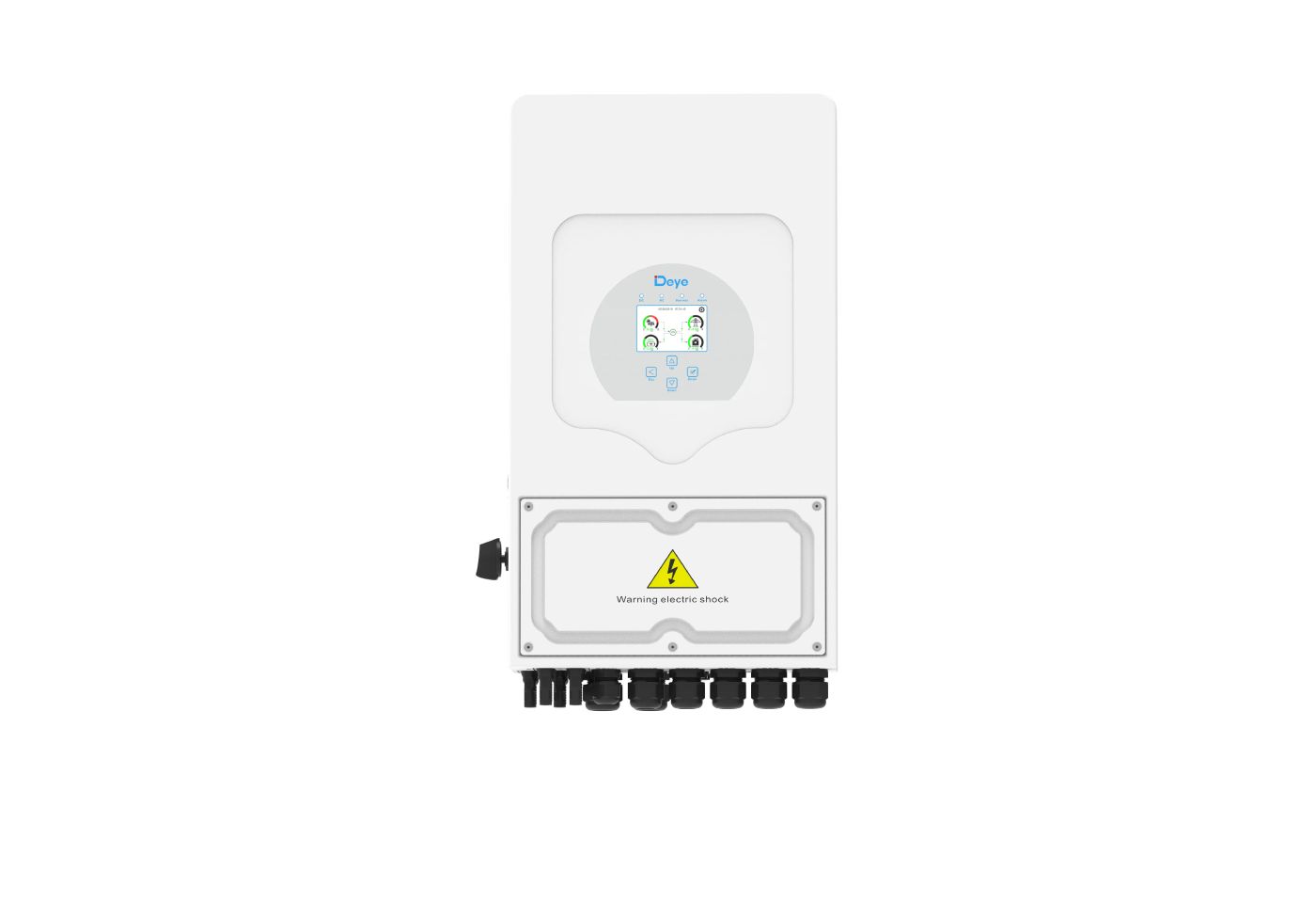

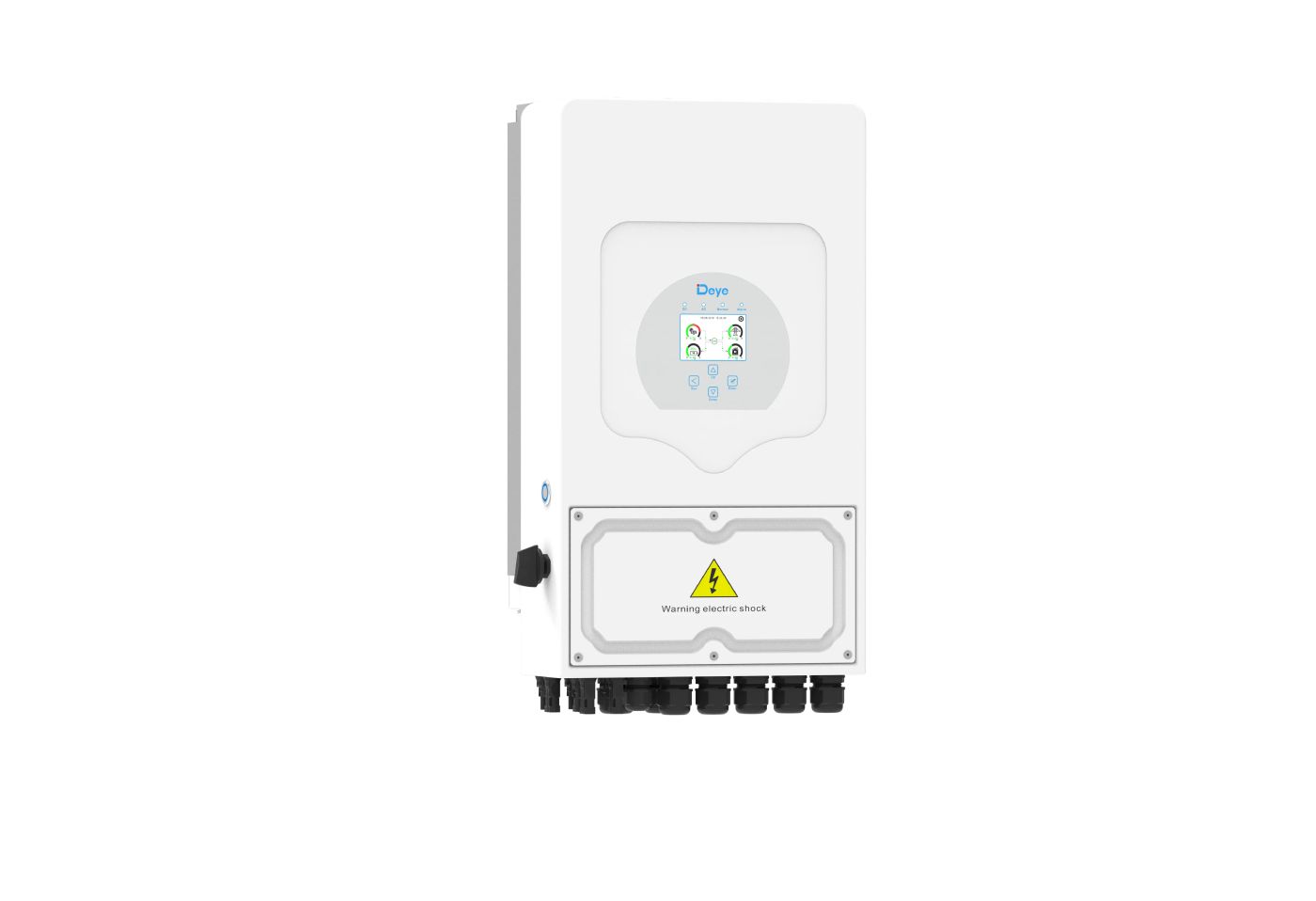

Deye 6kW SUN-6K-SG05LP1-EU-AM2P Hybrid LV 1 phase inverter

Hibridni

Šifra: SUN-6K-SG05LP1-EU-AM2-PLUS

Isporuka 48 sata

Samo za registrirane korisnike

Registrirajte se za prikaz ili kupnju proizvoda

Prijava

Max. snaga: 12000 W
Raspon napona baterije: 40-60 V
Max. struja punjenja/pražnjenja: 135 A


Certifikati (klikni za pregled i preuzimanje):


Battery Input Data
  • Battery Type: Lead-acid or Lithium-ion
  • Battery Voltage Range (V): 40–60
  • Max. Charging/Discharging Current (A): 135
  • Charging Strategy for Li-ion Battery: Self-adaption to BMS
  • Number of Battery Input: 1

PV String Input Data
  • Max. PV access power (W): 12000
  • Max. PV Input Power (W): 9600
  • Max. PV Input Voltage (V): 500
  • Start-up Voltage (V): 125
  • MPPT Voltage Range (V): 150–425
  • Rated PV Input Voltage (V): 370
  • Max. Operating PV Input Current (A): 18+18
  • Max. Input Short-Circuit Current (A): 27+27
  • No. of MPP Trackers / No. of Strings MPP Tracker: 2 / 1+1

AC Input/Output Data
  • Rated AC Input/Output Active Power (W): 6000
  • Max. AC Input/Output Apparent Power (VA): 6600
  • Rated AC Input/Output Current (A): 27.3/26.1
  • Max. AC Input/Output Current (A): 30/28.7
  • Max. Continuous AC Passthrough (grid to load) (A): 40
  • Peak Power (off-grid) (W): 2 times of rated power, 10s
  • Power Factor Adjustment Range: 0.8 leading to 0.8 lagging
  • Rated input/output voltage: 220/230V 0.85Un–1.1Un L+N+PE
  • Rated Input/Output Grid Frequency/Range (Hz): 50/45–55, 60/55–65
  • Total Current Harmonic Distortion THDi: <3% (of nominal power)
  • DC Injection Current: <0.5% In

Efficiency
  • Max. Efficiency: 97.6%
  • Euro Efficiency: 96.5%
  • MPPT Efficiency: >99%

Equipment Protection
  • Integrated: DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (AFCI) (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
  • Surge Protection Level: TYPE II (DC), TYPE II (AC)

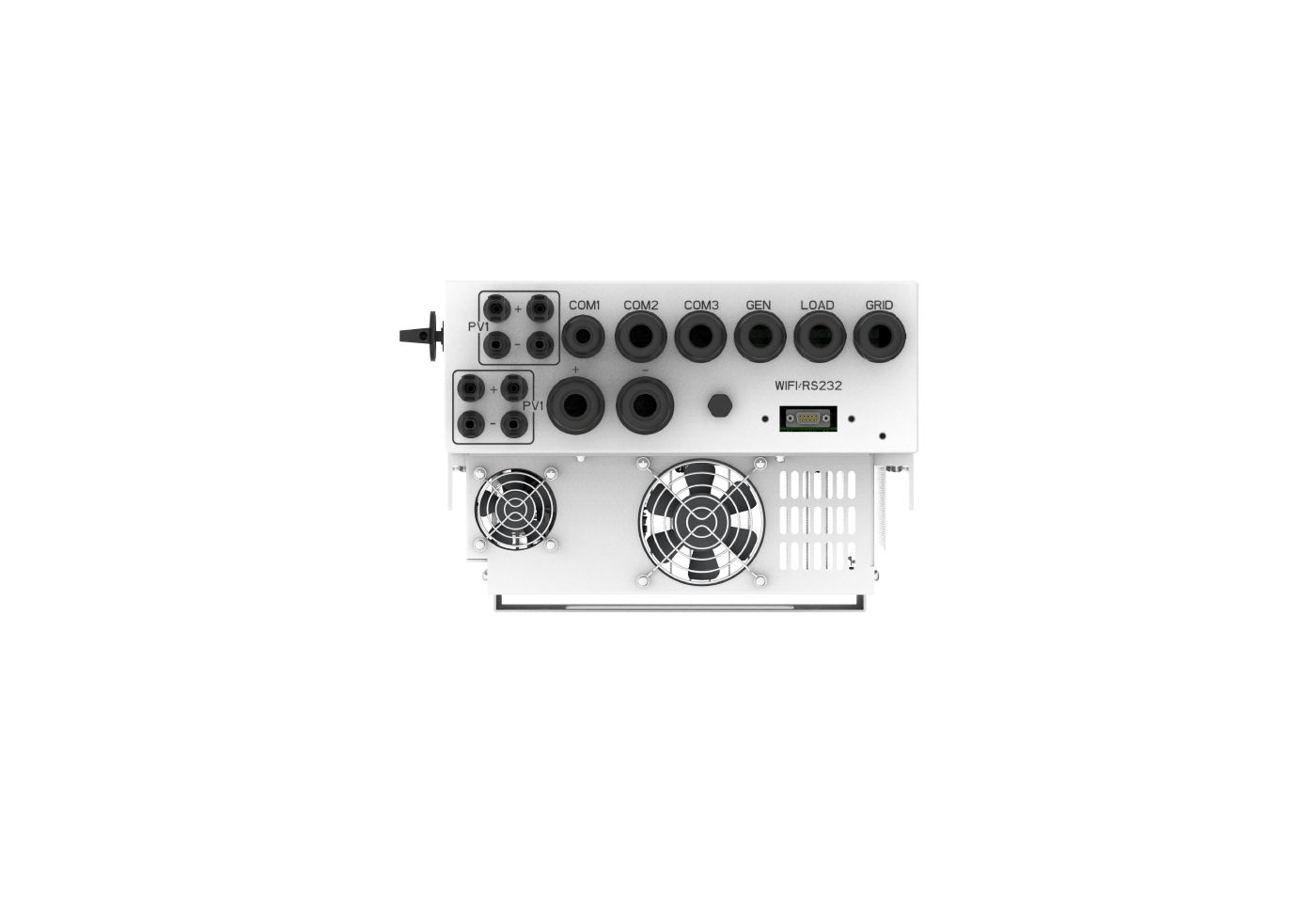

Interface
  • LCD/LED Display: LCD
  • Communication Interface: WIFI, RS485, CAN

General Data
  • Operating Temperature Range (℃): −40 to +60℃, >45℃ Derating
  • Permissible Ambient Humidity: 0–100%
  • Permissible Altitude: 2000m
  • Noise (dB): <45
  • Ingress Protection (IP) Rating: IP65
  • Inverter Topology: Non-Isolated (solar), Isolated (battery)
  • Over Voltage Category: OVC II (DC), OVC III (AC)
  • Cabinet Size (W×H×D mm): 330×580×232 (Excluding Connectors and Brackets)
  • Weight (kg): 24.9
  • Type of Cooling: Intelligent Air Cooling
  • Warranty: 5 Years/10 Years

Min. količina za narudžbu: 1
