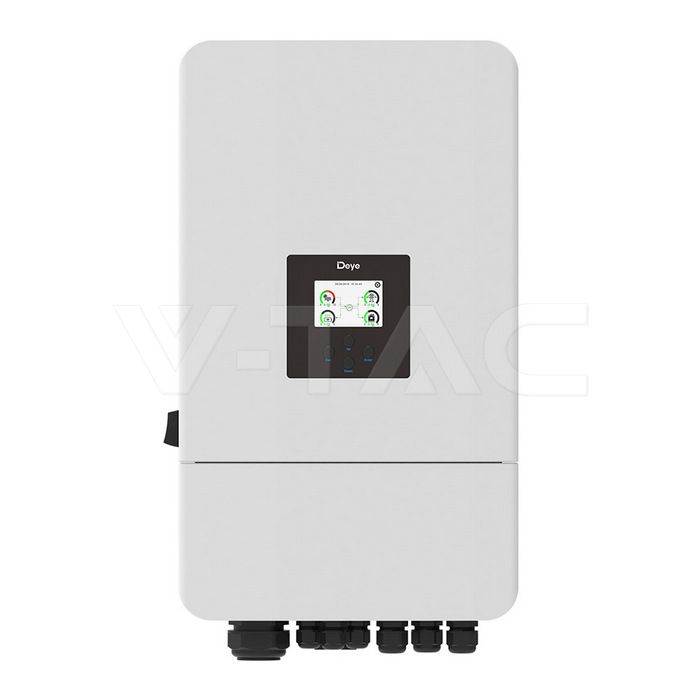

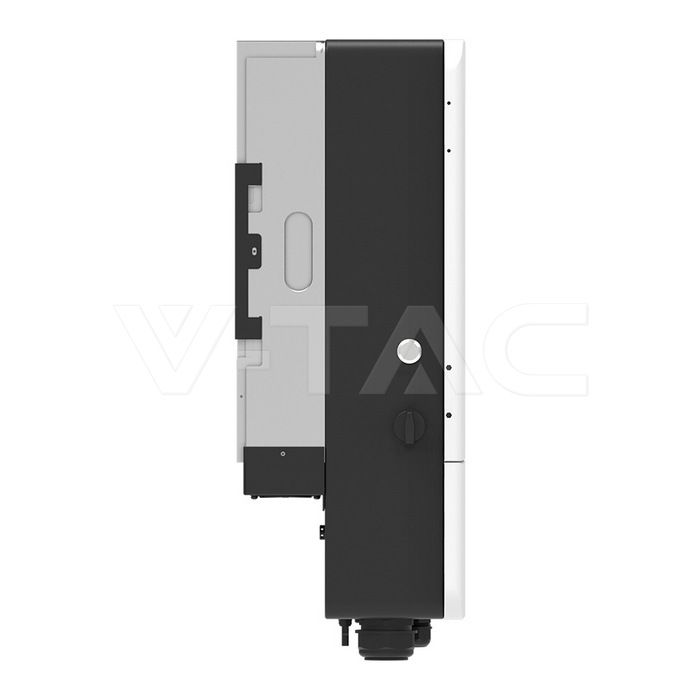

DEYE 6KW HYBRID INVERTER THREE PHASE 380 VAC-10YRS WARRANTY LV

Hibridni

Šifra: 12345

Isporuka 48 sata

Samo za registrirane korisnike

Registrirajte se za prikaz ili kupnju proizvoda

Prijava

Max. PV Input Power: 9000W;
Rated AC Input/Output Active Power: 6000W;


Certificates:









Wattage
  • Max. PV Input Power: 9000W;
  • Rated AC Input/Output Active Power: 6000W;
  • Peak Power (off-grid): 2 times of rated power, 10s;
Current
  • Max. Operating PV Input Current (A) 20+20
  • Max. Input Short-Circuit Current (A) 30+30;
  • Max. AC Input/Output Current (A) 10/9.6;
  • Rated AC Input/Output Current (A) 9.1/8.7;
Phase
  • Three Phase
Voltage
  • Max. PV Input Voltage: 800V;
  • MPPT Range: 200~650V;
  • Rated PV Input Voltage: 550V;
  • Start-up Voltage: 160V;
Frequency
  • Rated Input/Output Grid Frequency/Range(Hz) 50/45-55, 60/55-65
Power Factor
  • 0.8 leading to 0.8 lagging
Capabilities
  • Working conditions: -40 to +60℃, >45℃ Derating
  • IP Rating: IP65
Dimensions
  • Size: 386x660x250 mm
Certificates & Standards
  • Certification: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
  • Warranty: 10 years





Min. količina za narudžbu: 1
