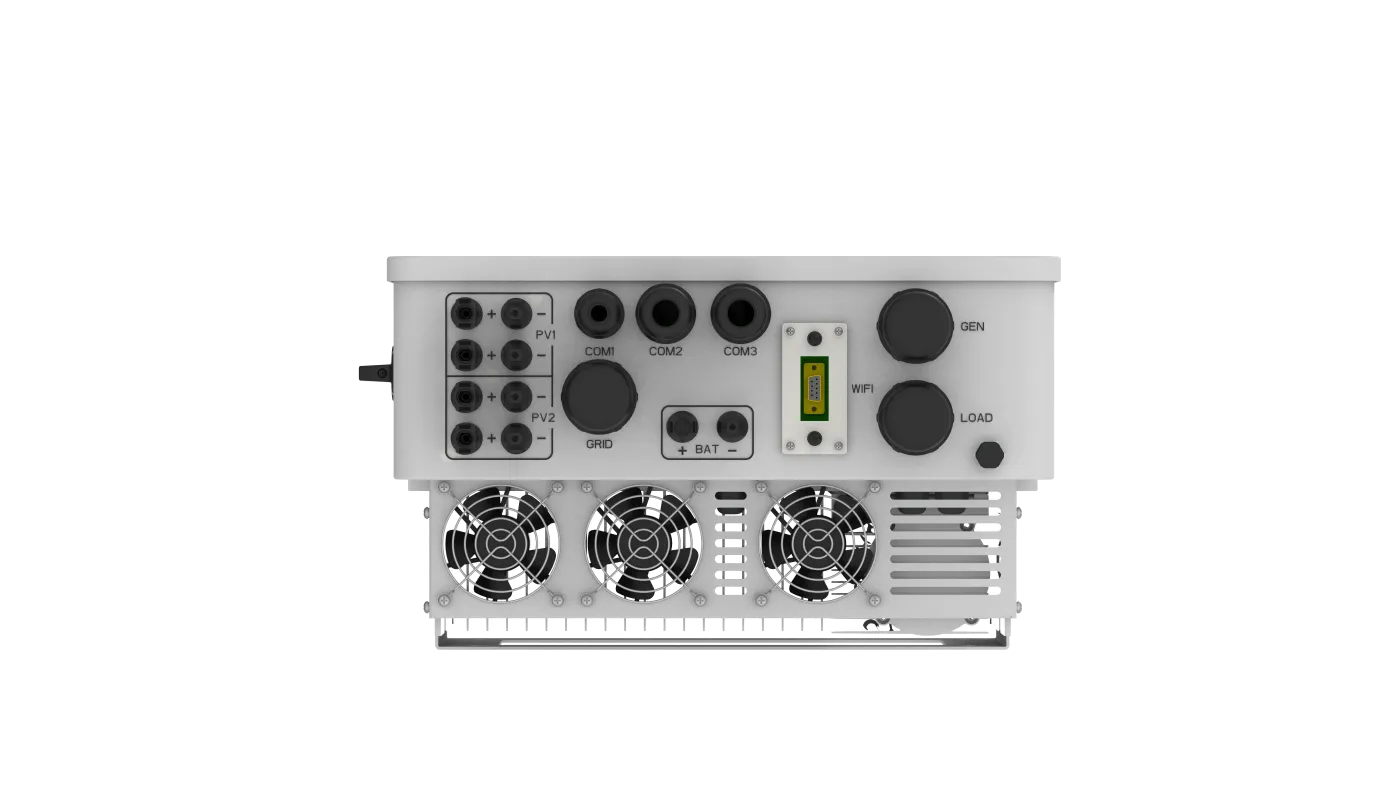

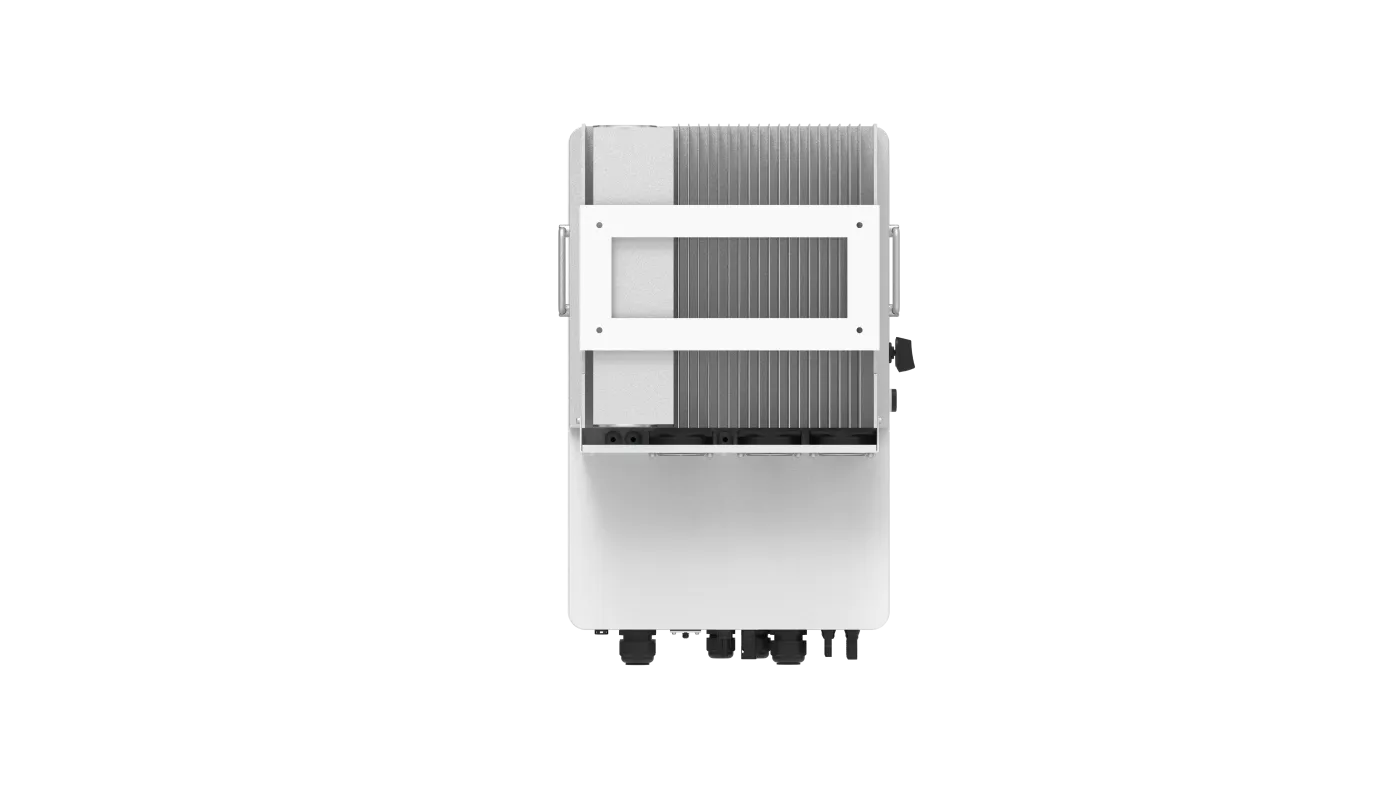

Deye 25kW SUN-25K-SG01HP3-EU-AM2 Hybrid HV 3 phase inverter

Hibridni

Šifra: SUN-25K-SG01HP3-EU-AM2

Isporuka 10 dana
Proizvod je dostupan kroz 10 dana

Samo za registrirane korisnike

Registrirajte se za prikaz ili kupnju proizvoda

Prijava

Max. snaga: 40000 W
Raspon napona MPPT: 150-850 V
Max. struja punjenja/pražnjenja: 37 A


Certifikati (klikni za pregled i preuzimanje):



Certificate od Conformity (EN 62920:2017/A1:2021 , EN IEC 61000-3-2:2019/A1:2021 , EN 61000-3-3:2013/A2:2021/AC:2022-01 , EN IEC 61000-3-11:2019 , EN 61000-3-12:2011)

Certificate of Conformity (EN IEC 61000-6-1:2019, EN IEC 61000-6-2:2019 , EN IEC 6100-6-3:2019, EN IEC 61000-6-4:2019 ,
                                           EN 61000-3-3:2013/A2:2021/AC:2022-01 , EN IEC 61000-3-11:2019 , EN 61000-3-12:2011, EN 55011:2016/A2:2021)

Certificate                      (IEC 62109-1:2010 , IEC 62109-2:2011 , EN 62109-1:2010 , EN 62109-2:2011 )


Certificate of Conformity  (EN 50549-1:2019)

Certificate of Conformity  (VDE-AR-N 4105/11.18 , DIN VDE 0124-100/06.20)

Verification of Compliance   (IEC 61683:1999. Photovoltaics systems - Power conditioners - Procedure for measuring efficiency.
                                              IEC 60068-2-1:2007. Environmental testing. Part 2-1: Tests. Test Ae: Cold.
                                              IEC 60068-2-2:2007. Environmental testing. Part 2-2: Tests. Test Be: Dry heat.
                                              IEC 60068-2-14:2009. Environmental testing. Part 2-14: Tests. Test Nb: Change of temperature.
                                              IEC 60068-2-30:2005. Environmental testing. Part 2-30: Tests. Test Db-Variant 1:Damp heat, cyclic (12 h + 12 h cycle))




Battery Input Data

  • Battery Type: Lithium-ion
  • Battery Voltage Range: 160–700 V
  • Max. Charging/Discharging Current: 50 A
  • Charging Strategy for Li-ion Battery: Self-adaption to BMS
  • Number of Battery Input: 1

PV String Input Data

  • Max. PV Access Power: 50,000 W
  • Max. PV Input Power: 40,000 W
  • Max. PV Input Voltage: 1,000 V
  • Start-up Voltage: 180 V
  • MPPT Voltage Range: 150–850 V
  • Rated PV Input Voltage: 700 V
  • Max. Operating PV Input Current: 26 + 26 A
  • Max. Input Short-Circuit Current: 39 + 39 A
  • No. of MPP Trackers / No. of Strings per MPP Tracker: 2 / 2+2

AC Input/Output Data

  • Rated AC Input/Output Active Power: 25,000 W
  • Max. AC Input/Output Apparent Power: 27,500 VA
  • Rated AC Input/Output Current: 37.9 / 36.3 A
  • Max. AC Input/Output Current: 41.7 / 39.9 A
  • Max. Continuous AC Passthrough (Grid to Load): 80 A
  • Peak Power (Off-grid): 1.5 times of rated power, 10 s
  • Power Factor Adjustment Range: 0.8 leading to 0.8 lagging
  • Rated Input/Output Voltage: 220/380 V, 230/400 V; 0.85Un–1.1Un; 3L+N+PE
  • Rated Input/Output Grid Frequency/Range: 50 Hz / 45–55 Hz; 60 Hz / 55–65 Hz
  • Total Current Harmonic Distortion (THDi): <3% (of nominal power)
  • DC Injection Current: <0.5% In

Efficiency

  • Max. Efficiency: 97.6%
  • Euro Efficiency: 97.0%
  • MPPT Efficiency: >99%

Equipment Protection

  • Integrated Protection: DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (AFCI) (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
  • Surge Protection Level: TYPE II (DC), TYPE II (AC)

Interface

  • LCD/LED Display: LCD
  • Communication Interface: WiFi, RS485, CAN
  • Monitor Mode: GPRS / WIFI / Bluetooth / 4G

General Data

  • Operating Temperature Range: -40 to +60°C, >45°C Derating
  • Permissible Ambient Humidity: 0–100%
  • Permissible Altitude: 2,000 m
  • Noise: ≤55 dB
  • Ingress Protection (IP) Rating: IP65
  • Inverter Topology: Non-Isolated
  • Over Voltage Category: OVC II (DC), OVC III (AC)
  • Cabinet Size (W × H × D): 408 × 638 × 237 mm (Excluding Connectors and Brackets)
  • Weight: 30.5 kg
  • Type of Cooling: Intelligent Air Cooling
  • Warranty: 5 Years / Up to 10 Years*

Additional Features

  • High Voltage Battery, Higher Efficiency
  • 6 Time Periods for Battery Charging/Discharging
  • AC Couple to Retrofit Existing Solar System
  • Max. 10 pcs Parallel for On-grid and Off-grid Operation
  • Support Multiple Batteries Parallel
  • Support Storing Energy from Diesel Generator
  • 100% Unbalanced Output
  • Max. Charging/Discharging Current: 50 A
