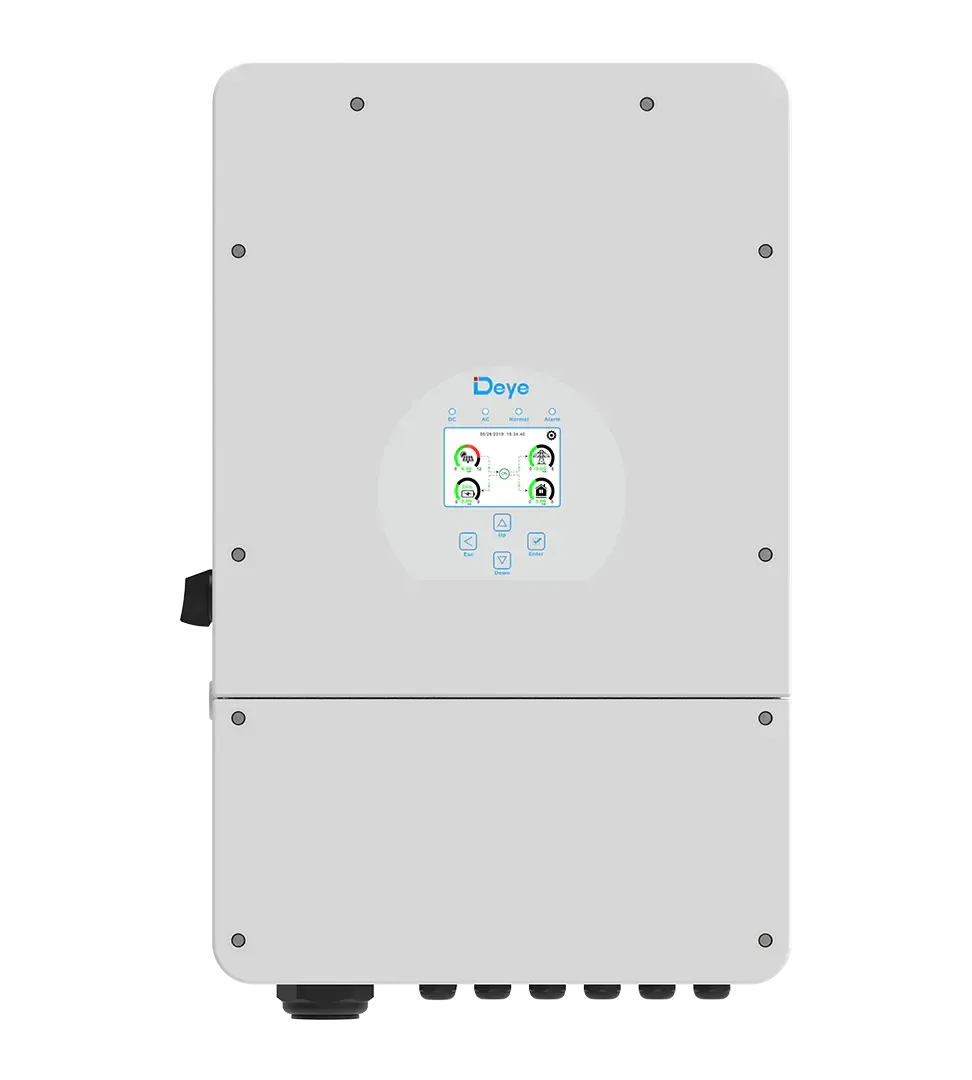

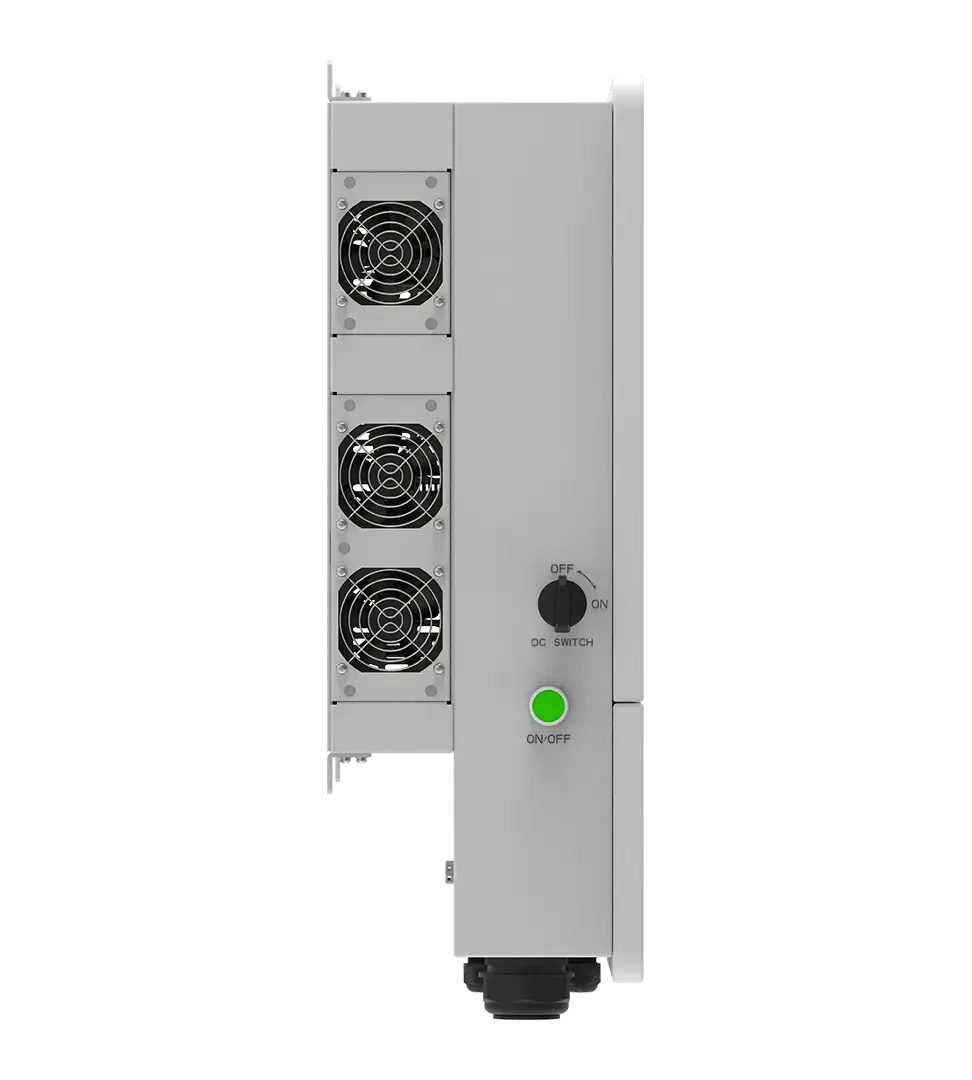

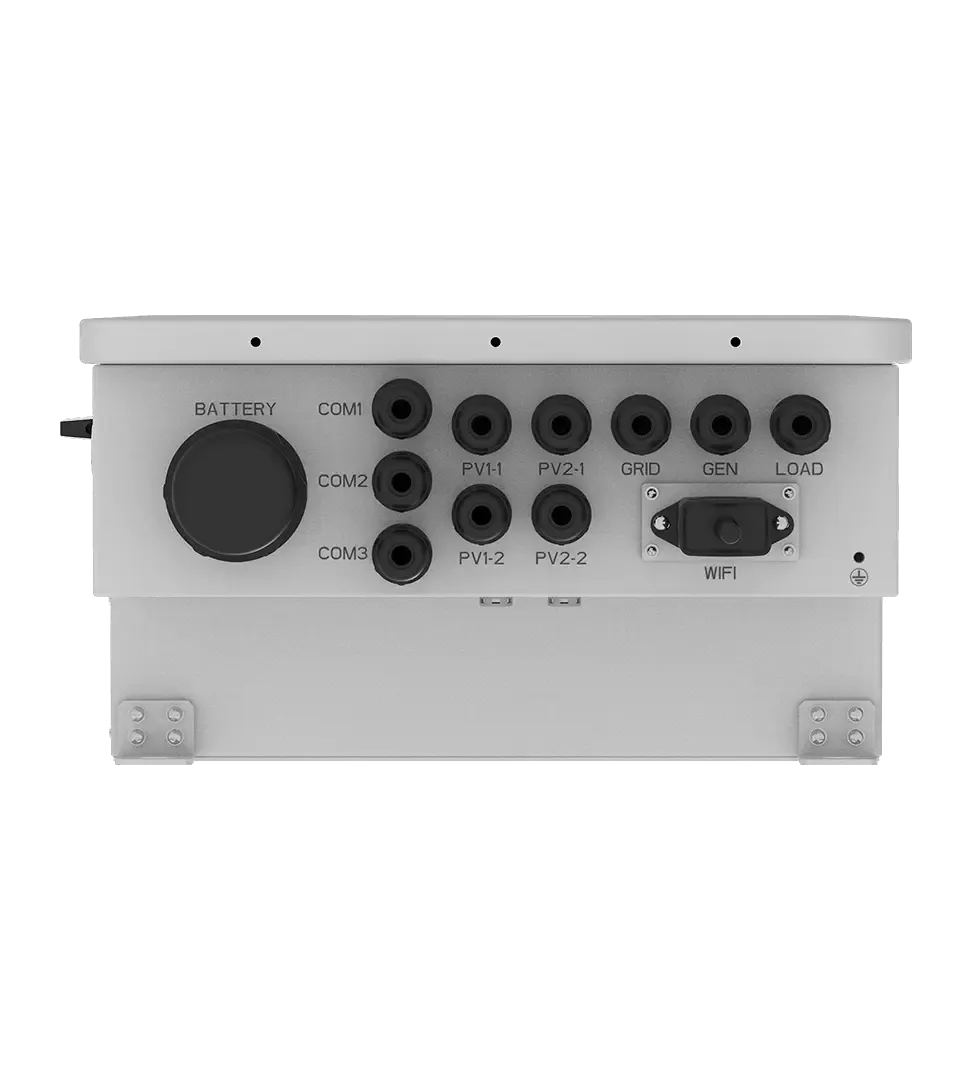

Deye 10kW SUN-10K-SG02LP1-EU-AM3P Hybrid LV 1 phase inverter

Hibridni

Šifra: SUN-10K-SG02LP1-EU-AM3-PLUS

Isporuka 48 sata

Samo za registrirane korisnike

Registrirajte se za prikaz ili kupnju proizvoda

Prijava

Max. snaga: 16000 W
Raspon napona baterije: 40-60 V
Max. struja punjenja/pražnjenja: 220 A


Battery Input Data
  • Battery Type: Lead-acid or Lithium-ion
  • Battery Voltage Range: 40–60 V
  • Max. Charging/Discharging Current: 220 A
  • Charging Strategy for Li-ion Battery: Self-adaption to BMS
  • Number of Battery Input: 1
PV String Input Data
  • Max. PV Access Power: 20,000 W
  • Max. PV Input Power: 16,000 W
  • Max. PV Input Voltage: 500 V
  • Start-up Voltage: 125 V
  • MPPT Voltage Range: 150–425 V
  • Rated PV Input Voltage: 370 V
  • Max. Operating PV Input Current: 32 + 32 + 32 A
  • Max. Input Short-Circuit Current: 60 + 60 + 60 A
  • No. of MPP Trackers / No. of Strings per MPP Tracker: 3 / 2+2+2
AC Input/Output Data
  • Rated AC Input/Output Active Power: 10,000 W
  • Max. AC Input/Output Apparent Power: 11,000 VA
  • Rated AC Input/Output Current: 45.5 / 43.5 A
  • Max. AC Input/Output Current: 50 / 47.9 A
  • Max. Continuous AC Passthrough (Grid to Load): 60 A
  • Peak Power (Off-grid): 2 times rated power, 10 s
  • Power Factor Adjustment Range: 0.8 leading to 0.8 lagging
  • Rated Input/Output Voltage: 220/230 V; 0.85Un–1.1Un; L+N+PE
  • Rated Input/Output Grid Frequency/Range: 50 Hz / 45–55 Hz; 60 Hz / 55–65 Hz
  • Total Current Harmonic Distortion (THDi): <3% (of nominal power)
  • DC Injection Current: <0.5% In
Efficiency
  • Max. Efficiency: 97.6%
  • Euro Efficiency: 96.5%
  • MPPT Efficiency: >99%
Equipment Protection
  • Integrated Protection: DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (AFCI) (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
  • Surge Protection Level: TYPE II (DC), TYPE II (AC)

Interface
  • LCD/LED Display: LCD
  • Communication Interface: WiFi, RS485, CAN
General Data
Operating Temperature Range: -40 to +60°C, >45°C Derating
Permissible Ambient Humidity: 0–100%
Permissible Altitude: 2,000 m
Noise: <45 dB
Ingress Protection (IP) Rating: IP65
Inverter Topology: Non-Isolated (solar), Isolated (battery)
Over Voltage Category: OVC II (DC), OVC III (AC)
Cabinet Size (W × H × D): 420 × 670 × 233 mm (Excluding Connectors and Brackets)
Weight: 35.6 kg
Type of Cooling: Intelligent Air Cooling
Warranty: 5 Years / Up to 10 Years*

Min. količina za narudžbu: 1
