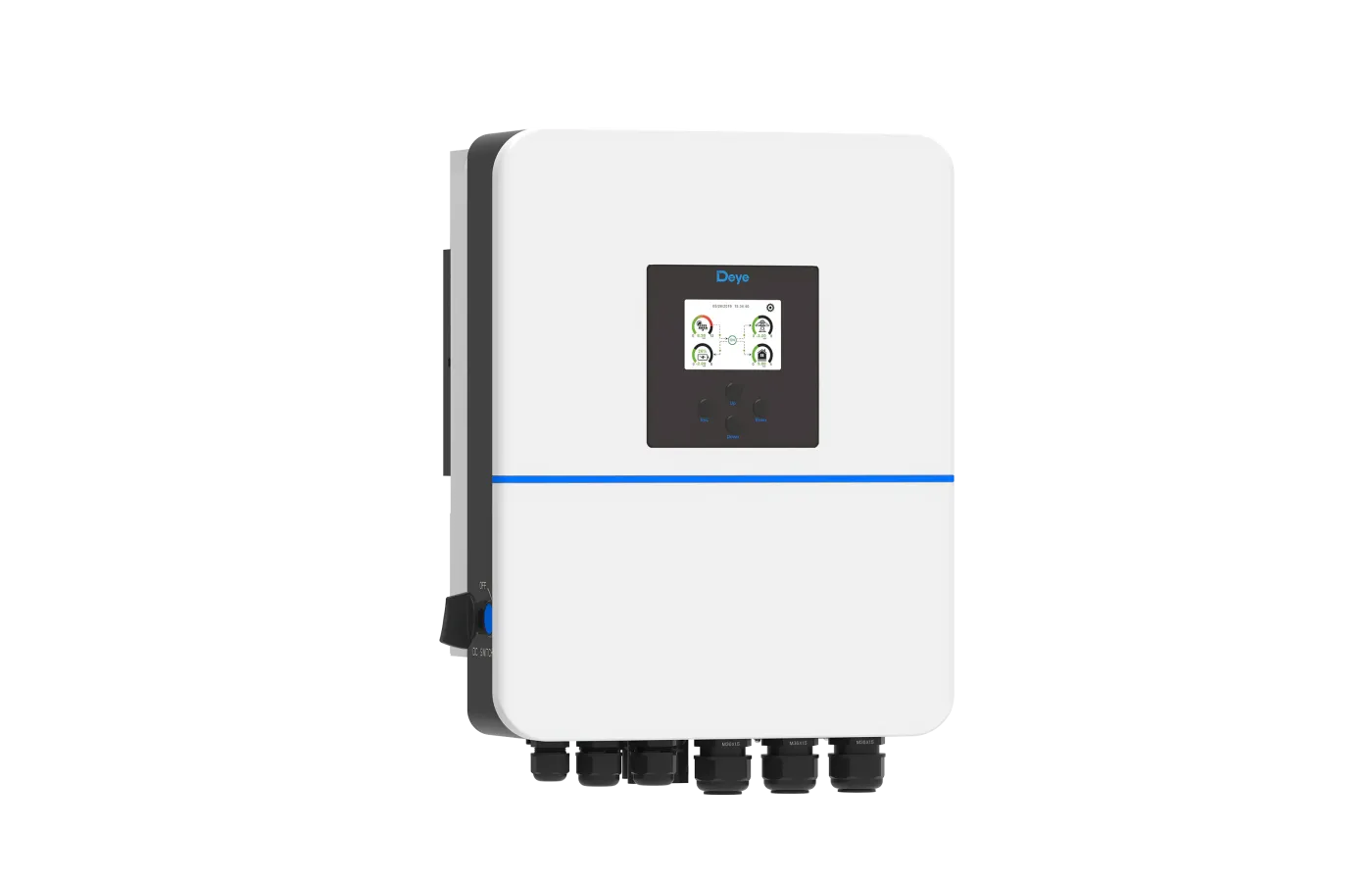

Deye 10kW SUN-10K-SG01HP3-EU-DM2 Hybrid HV 3 phase inverter

Hibridni

Šifra: SUN-10K-SG01HP3-EU-DM2

Isporuka 10 dana
Proizvod je dostupan kroz 10 dana

Samo za registrirane korisnike

Registrirajte se za prikaz ili kupnju proizvoda

Prijava

Max. snaga: 20000 W
Raspon napona baterije: 160-700 V
Max. struja punjenja/pražnjenja: 37 A


Battery Input Data

  • Battery Type: Lithium-ion
  • Battery Voltage Range: 160–700 V
  • Max. Charging/Discharging Current: 37 A
  • Charging Strategy for Li-ion Battery: Self-adaption to BMS
  • Number of Battery Input: 1

PV String Input Data

  • Max. PV Access Power: 20,000 W
  • Max. PV Input Power: 16,000 W
  • Max. PV Input Voltage: 1,000 V
  • Start-up Voltage: 180 V
  • MPPT Voltage Range: 150–850 V
  • Rated PV Input Voltage: 600 V
  • Max. Operating PV Input Current: 18 + 18 A
  • Max. Input Short-Circuit Current: 27 + 27 A
  • No. of MPP Trackers / No. of Strings per MPP Tracker: 2 / 1+1

AC Input/Output Data

  • Rated AC Input/Output Active Power: 10,000 W
  • Max. AC Input/Output Apparent Power: 11,000 VA
  • Rated AC Input/Output Current: 15.2 / 14.5 A
  • Max. AC Input/Output Current: 16.7 / 16 A
  • Max. Continuous AC Passthrough (Grid to Load): 35 A
  • Peak Power (Off-grid): 1.5 times rated power, 10 s
  • Power Factor Adjustment Range: 0.8 leading to 0.8 lagging
  • Rated Input/Output Voltage: 220/380 V, 230/400 V; 0.85Un–1.1Un; 3L+N+PE
  • Rated Input/Output Grid Frequency/Range: 50 Hz / 45–55 Hz; 60 Hz / 55–65 Hz
  • Total Current Harmonic Distortion (THDi): <3%
  • DC Injection Current: <0.5% In

Efficiency

  • Max. Efficiency: 97.6%
  • Euro Efficiency: 97.0%
  • MPPT Efficiency: >99%

Equipment Protection

  • Integrated Protection: DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (AFCI) (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
  • Surge Protection Level: TYPE II (DC), TYPE II (AC)

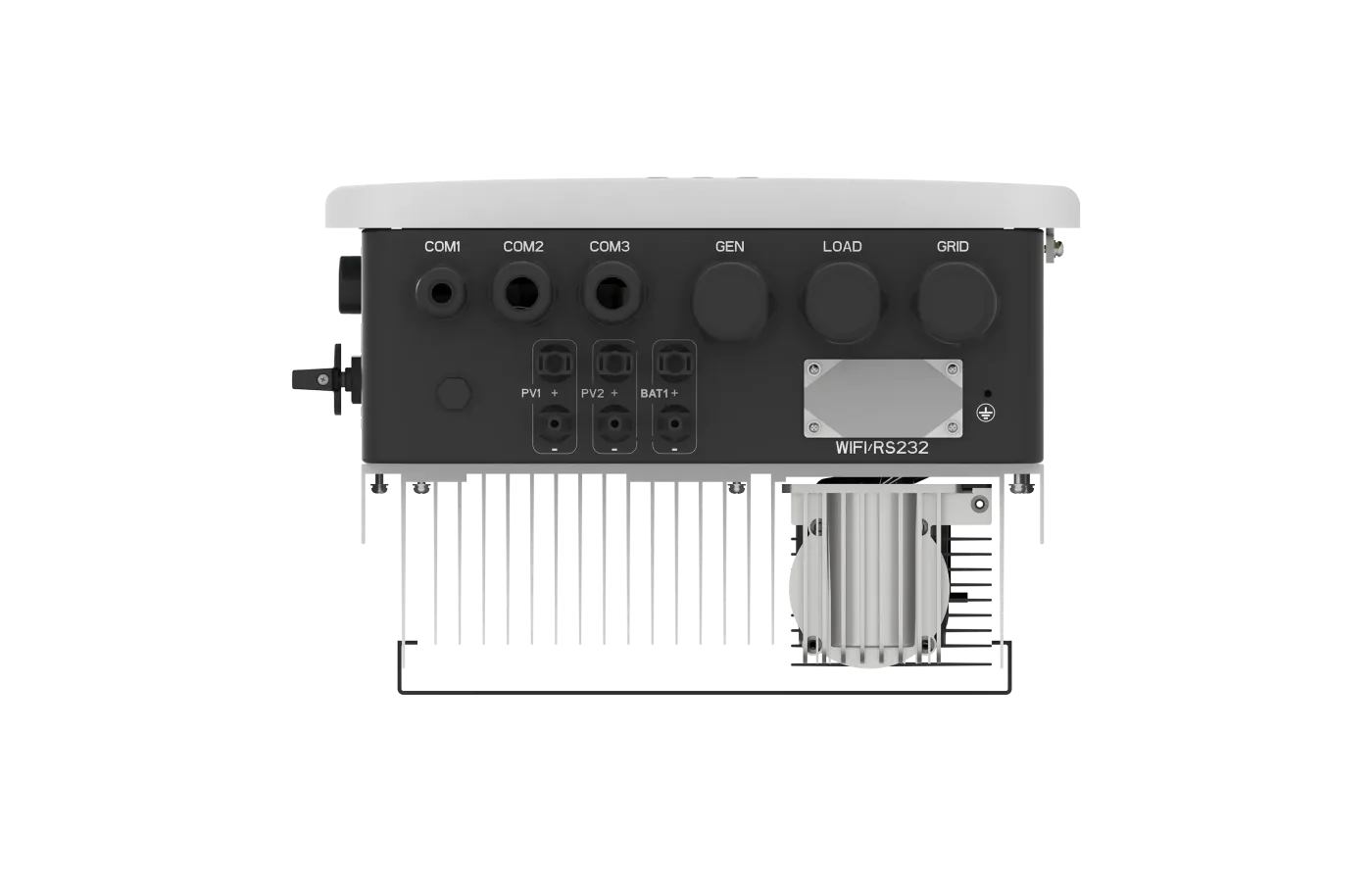

Interface

  • LCD/LED Display: LCD + LED
  • Communication Interface: RS485, RS232, CAN
  • Monitor Mode: GPRS / WIFI / Bluetooth / 4G / LAN (optional)

General Data

  • Operating Temperature Range: -40 to +60°C, >45°C Derating
  • Permissible Ambient Humidity: 0–100%
  • Permissible Altitude: 2,000 m
  • Noise: ≤45 dB
  • Ingress Protection (IP) Rating: IP65
  • Inverter Topology: Non-Isolated
  • Over Voltage Category: OVC II (DC), OVC III (AC)
  • Cabinet Size (W × H × D): 376 × 470 × 244.5 mm (Excluding Connectors and Brackets)
  • Weight: 24 kg
  • Type of Cooling: Intelligent Air Cooling
  • Warranty: 5 Years / Up to 10 Years*

Additional Features

  • High Voltage Battery, Higher Efficiency
  • 6 Time Periods for Battery Charging/Discharging
  • AC Couple to Retrofit Existing Solar System
  • Max. 10 pcs Parallel for On-grid and Off-grid Operation
  • Support Multiple Batteries in Parallel
  • Support Storing Energy from Diesel Generator
  • 100% Unbalanced Output

Min. količina za narudžbu: 1
